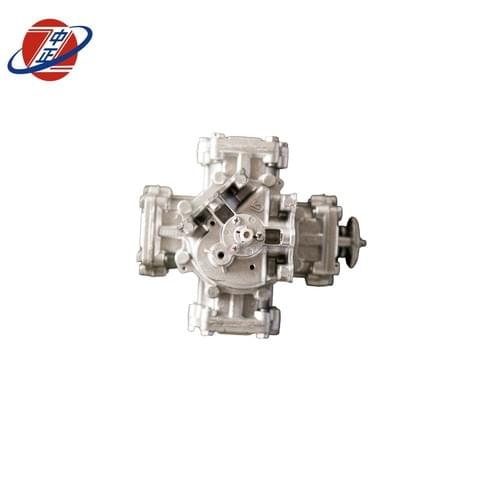

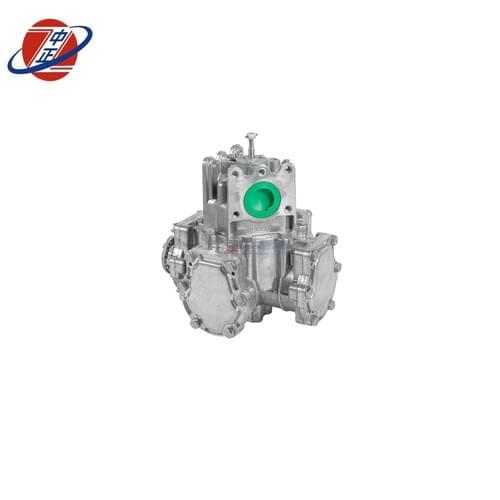

Self-Produced Gilbarco Flowmeter for Fuel Dispenser
$147.76
Product description：
Gilbarco flowmeter is a volumetric flow meter developed by Zhongzheng Technology Equipment Co., Ltd. for continuous measurement of the flow of liquid in the pipeline. It uses mechanical measuring elements to continuously divide the fluid into a single known volume part. Repeat the number of times to fill and discharge this volume of fluid to measure the total volume of fluid.
The flow meter is mainly composed of precision components such as a housing, a counter, an elliptical gear, and a coupling (magnetic coupling or axial coupling). It has the advantages of wide flow range, simple operation and maintenance, and convenient installation and use. The main technology has reached the level of similar foreign products, and it is widely used in liquid measurement in petroleum, chemical, electric power, metallurgical coal and other industries.
Product parameters:
product name | Gilbarco Fuel Flow Meter |
Product number | RSJ 100 |
flow | 5-60 L/min |
Maximum flow | 60 liters/minute |
Displacement per revolution | 0.473 liters |
Adjustable minimum volume | 0.04% |
accuracy | ±0.2% |
Repeated changes | Up to 0.07% |
Work pressure | 0.18-0.45 MPa |
Operating temperature | -40℃ to 55℃ |
Product Features:
(1) The measurement is not affected by the fluid flow state
The larger the sticky skin of the nuclear test medium, the smaller the leakage error, which is more beneficial to the measurement. The metering accuracy is high and it is suitable for the measurement of the flow of high-viscosity media.
(2) Compact structure, easy maintenance, long-term stable gear rotation
No moving parts, wide measurement, long life, high accuracy, adjustable error, easy installation, easy to carry.
(3) Draw experience, optimize design with advanced technology
The structure is simple, lightweight, accurate, sensitive, easy to install and maintain.
(4) Cemented carbide anti-corrosion, strong wear resistance
No impurities such as fibers, particles, etc., for liquids with different kinematic viscosities, the flowmeter can be used after real liquid calibration.
(5) Easy-to-operate dial, matching display instrument, practical and energy-saving.
Clean and concise dial design, easy to read and understand, easy to operate, bring back to zero, total accumulation; quantitative control, over-alarm alarm, is an ideal meter for flow meters and energy saving.
(6) Oval gear
High precision, light weight, stable operation, no rust, strong wear resistance.
(7) Thread connection
Exquisite internal thread, easy connection, is a commonly used measuring instrument used in the installation of combined pumps in domestic large equipment applications.
